VXD-2 Line Filter Products

We offer a comprehensive range of products, designed to meet specific needs of industries:

Select Your VXD-2 Line Filter Products

Sumved International, we specialize in delivering high-quality of VXD-2 Line Filter, electrical components and solutions to industries around the globe. As trusted distributors, suppliers, and exporters, our commitment lies in ensuring the safety, efficiency, and performance of your electronic systems through the delivery of top-notch products.

What is Mean By VXD-2 Line Filter?

The Vortex Filter is designed to remove all water molecules present in the liquid state. It is referred to as "Dry Air" as long as the water is not in its liquid form. The Vortex Filter not only removes water but also evaporates it, ensuring that the resulting air is completely free of liquid water, or in other words, dry air. This process does not affect the dew point. Any subsequent cooling after the Vortex Filter will lead to the formation of condensation. Therefore, these dryers are best suited for applications near the point of use machines (such as those with a distance less than 4 meters).

Specifications:

Model	VXD 2
Max. Flow	25 cfm
Max. Working pressure	15 kg/cm2
End connection	½’ BSP
Size (H x B x D) mm	200 x 100 x 50
Weight	1.25 Kg
Air Inlet Condition	Max. Fluid Temp 70o C
Material of construction	Extruded Aluminium
Coating	Powder coated
Sealing	Polyurethane & Nitrile Rubber

How it Works:

In the initial phase, the process of coalescence occurs as moist and contaminated air is forced to rotate and swirl through a complex filter constructed with stainless steel wire. The moisture in the air turns into droplets due to centrifugal force. These droplets, along with other impurities, move down the wire and into the filter cartridge, where they eventually reach a honeycomb structure. Here, water is drained out.

In the subsequent phase, the air passes through a filter made of loosely woven elements composed of highly absorbent long staple cotton, supported by stainless steel wires for structural reinforcement. As the air flows through these elements, it is disrupted into small whirls known as Micro Vortices. This process, called Vortex Shedding, results in the formation of small vacuums where water particles are captured. These particles then break down and evaporate.

Oil droplets merge in the initial phase, while the second phase's elements absorb oil vapors, successfully eliminating 99% of the oil content. The filtration system achieves a 100% efficiency for particles of 5 microns in size and 50% for particles of 1 micron in size.

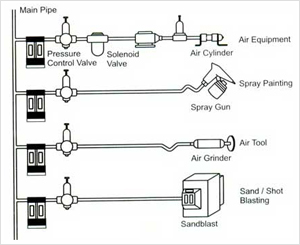

Installation Process:

Features of Vortex Filter:

• High Functionality:
  VXD-2 Line Filter is designed to eliminate these problems and provide unparalleled performance in a broad electrical spectrum. It also exhibits better capability to block EMI and RFI noise that can interfere with the intended operation of different equipment. This high functionality ensures that the devices connected to the system work as clearly and stably as possible and practically excludes the possibility of failure because of a low signal/noise ratio.
• Impeccable Performance:
  As a high precision and high reliability filter, the VXD-2 Line Filter promises cleanliness of output voltage under different modes of operations. It boasts of enhanced filtering capability that provides an unceasing shield against electrical vagaries and péndulum and still maintains optimum performance level at any given moment irrespective of the load. The filter works efficiently, and delivers clean power to all appliances that are plugged into it, prolongs the lifespan of the attached equipment and reduces the chances of frequent switches off.
• Sturdy Construction:
  In regards to its construction the VXD-2 Line Filter is very strong and made to be able to face a lot of abuse in terms of physical environment. Constructed from high-quality materials and understanding the need to provide a detailed and attractive appearance to match its functionality, the filter is durable. It is resistant to mechanical stress and vibration, and it resists external factors, so its performance in industrial and commercial systems will be consistent. It increases the durability of the product, thereby increasing the lifetime, and in turn, also helps the client save more cost in replacements.
• Power Efficient:
  Another exciting feature of the VXD-2 Line Filter is that it is a power-saving filter. It achieves a low power loss to the degrees necessary for electrical noise elimination as a filter. This means that it not only shields your equipment but also guarantees that power is being drawn correctly to minimize power consumption of the system. It reduces its operational costs through efficiency in energy usage hence providing a sustainable solution in energy usage.

Benefits of the VXD-2 Line Filter:

• Removes Water, Oil, and Solid Particles:
  The VXD-2 Line Filter is designed to effectively remove contaminants such as water, oil, and solid particles from the air or fluid lines. These impurities can damage equipment, reduce efficiency, and cause operational failures if left unchecked. By filtering out these harmful substances, the VXD-2 ensures that your systems run smoothly and remain protected, reducing maintenance costs and extending the lifespan of machinery.
• Compact and Lightweight:
  One of the standout features of the VXD-2 Line Filter is its compact and lightweight design. This makes it easy to integrate into tight spaces or applications with limited room for installation. Additionally, the reduced weight makes it simpler to handle, transport, and install without requiring excessive labor or special equipment.
• No Electricity Used:
  The VXD-2 operates without the need for electricity, making it an eco-friendly and cost-effective solution. Since it doesn’t require power to function, it can be used in a variety of environments where electrical connections are either impractical or unavailable. This feature also contributes to energy savings and reduces the risk of electrical-related issues, such as power surges or malfunctions.
• All Aluminium Resists Oxidation and Scale Formation:
  The construction of the VXD-2 Line Filter uses high-quality aluminium, which is resistant to both oxidation and scale formation. This ensures that the filter remains durable and efficient over time, even in harsh environments or when exposed to moisture. The aluminium material not only prevents corrosion but also enhances the filter’s performance, ensuring it operates reliably in the long term.
• Large Surge Chamber:
  The filter is equipped with a large surge chamber, which provides additional capacity to handle sudden spikes in pressure or flow. This feature helps in absorbing unexpected surges or changes in system conditions, preventing damage to the filter and downstream components. It contributes to the overall stability of the system, ensuring consistent and uninterrupted operation even during fluctuating pressure.
